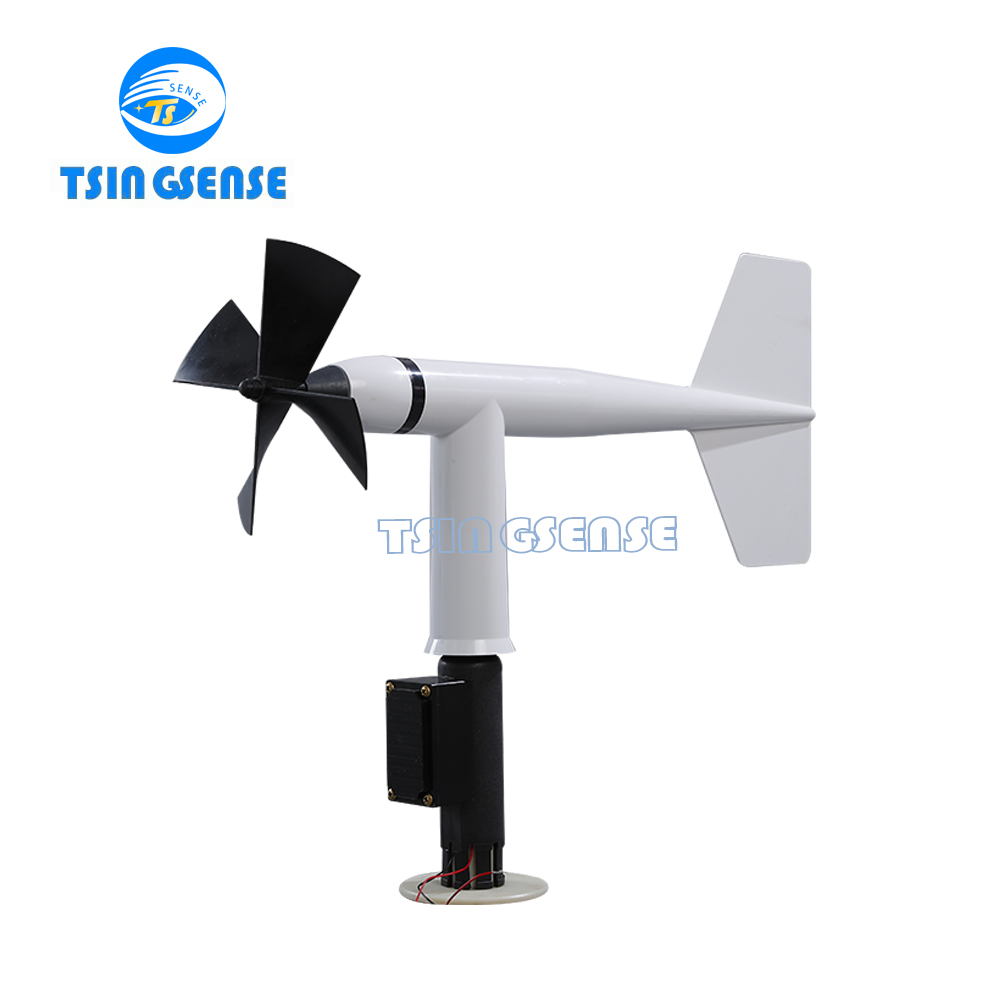

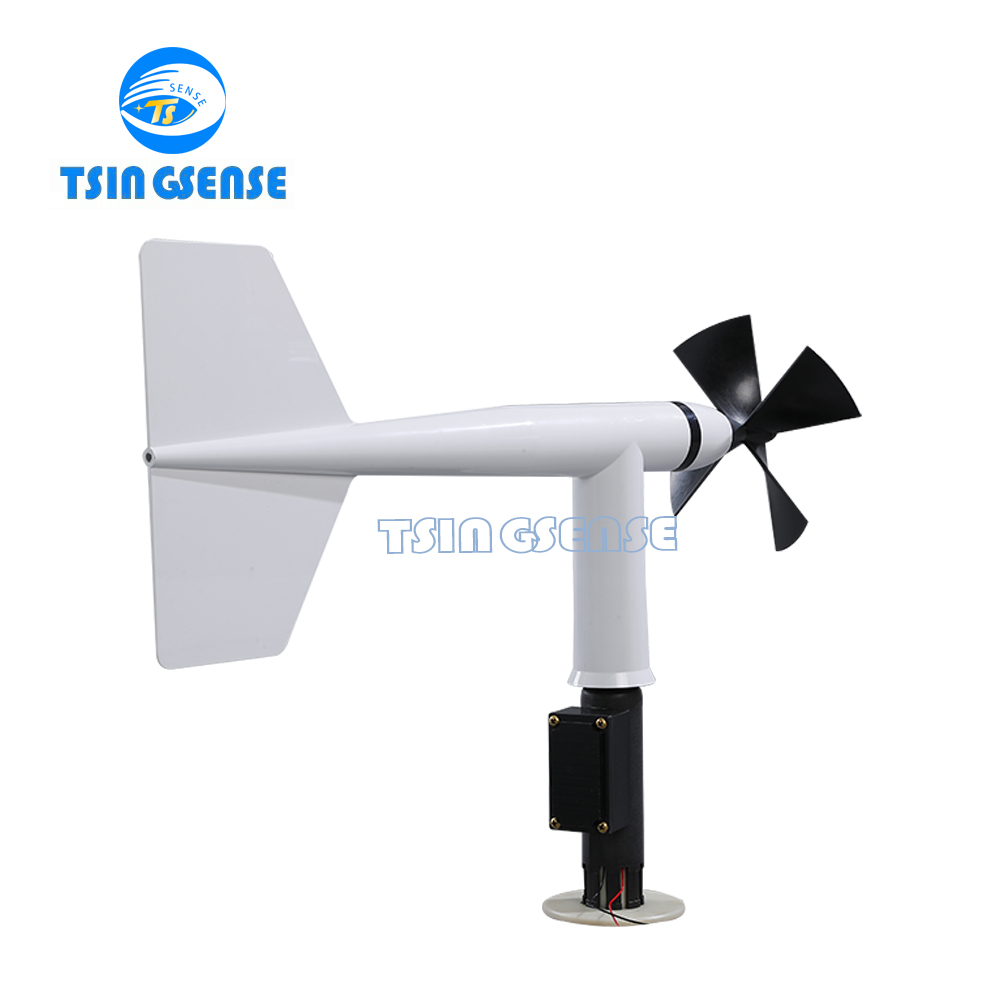

The TS WTSX200series wind sensor is a standardized instrument for measuring horizontal wind speed and wind direc- tion,divided into three models:L/H/S. This series of wind sensors is developed for marine applications initially,characterized by large ranges,high accu- racy,and corrosion resistance.It is composed of vane,propellers,nose cones,wind speed shafts,mounting columns and other internal components.The AAS plastic materials with resistant to UV rays and oxidation is used to prevent plasticization and yellowing.The product has high performance and quality,and good consistency,can be widely used in marine environmental monitoring,traffic meteorological monitoring,agriculture,forestry,animal husbandry and sideline meteorological monitoring,polar meteorological monitoring,photovoltaicenvironmental monitoring,wind power meteorological monitoring and other fields.

The wind speed shaftof TS WTSX200 series wind sensor is actuated rotating through a propeller.Then the magnet fixed on the wind speed shaft induces the speed measur- ing coil to generate sinusoidal alternating current signal. The speed measuring coil generates three complete sinusoidal electrical signals for every rotation of the propeller.The frequency of sinusoidal electrical signals is proportional to the wind speed.Therefore,calculating the wind speed data through the frequency of the sinusoidal electrical signals is stable and accurate. The direction of the vane of the wind sensor indicates the wind direction.The angle sensor is drive to rotate by the vane,and the feedback voltage output by the angle sensor accurately outputs wind direction data.



Q:Do you supply tripod and solar panels?

A: Yes, we can supply it, but this is optional.

Q:Can we choose other desired sensors?

A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.

Q:What is the way of transmission mode?

A: Communication interface adopts RS485

Q: What industry can be applied to in addition to construction sites?

A:Urban roads,bridges,smart city,industrial park and mines, etc.

Q: How to install it?

A: Installed on a hollow mast with a diameter of 60-75mm.



 Q: Are you the final manufacturer?

A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.

Q: Do you offer free samples?

A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.

Q: What payment ways do you accept?

A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.

Q: What is your delivery time?

A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .

Q: What is the way of delivery?

A:  Freight mode depends on time demand and customer requirements.

Q: How is your quality assurance service?

A: Our service is 2 years quality assurance, responsible for free maintenance.
