WTS700 Integrated automatic weather station
High - Precision Intelligent Weather Station Sensor: Capable of Measuring Temperature, Relative Humidity, Precipitation Intensity, Precipitation Type, Precipitation Quantity, Air Pressure, Wind Direction, Wind Speed and Radiation
Product Description
WTS700 can simultaneously measure 7 meteorological parameters: air temperature, air humidity, air pressure, wind direction, wind speed, rainfall and radiation.It has the advantages of high accuracy, fast response time, strong anti-interference ability, serial port output and so on.Users can measure directly through PC or external instruments.
Features
● Integrated design of multiple sensors,(No need for a receiver)
● Design of maintenance free system,(Simple installation)
● Open system protocol
● RS485 output signal,(RS232 can be selected)
● Ultra low power design
● Industrial grade protective housing,( Ensure long-term outdoor use)
● Optional built-in electronic compass, GPRS, GPS, etc.
Technical Parameters
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Air temperature | -40℃~+80℃ | 0.1℃ | ±0.3℃ | Platinum resistance |
Air humidity | 0~100%Rh | 1%Rh | ±2%Rh | Capacitance |
Air pressure | 10~1300hpa | 0.1hpa | ±1hpa | Piezoresistive |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
Wind speed | 0~60m/s | 0.1m/s | ±0.3m/s(3%) | Ultrasonic |
Rainfall | 0~5mm/min | 0.2mm | ±3% | Infrared light |
Solar radiation | 0~2000W/m2 | 1W/m2 | ≤5% | Silicon photodetector |
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03,Electronic compass-b01, GPS-b02, Heating, Battery-d01. | ||||
Output signal:Standard RS485,Optional RS232 | ||||
UV index sensors can be added | ||||
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS700 sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:RS485 output signal,(RS232 can be selected)

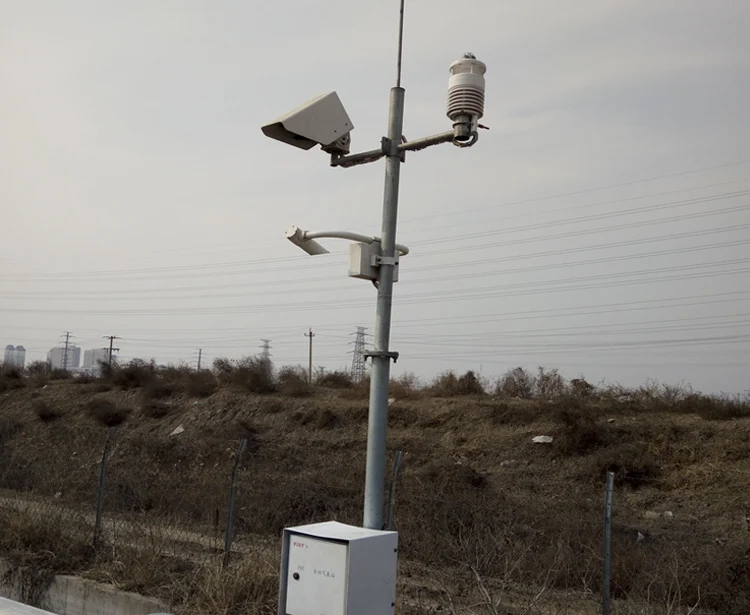

Application
Company information
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
