WES300 air quality monitoring sensor for outdoor use
WES300 Multifunctional All - in - One Air Pollution Monitoring: Measure TVOC ,Temperature, Humidity, and More
Product Description
Volatile gases from total volatile organic compounds can cause harm to human health and the environment. Hazardous volatile organic compounds are usually not acute poisoning but have long-term harmful effects on health.VOC source: Industrial pollution, tobacco smoke, paints, adhesives, paints, cleaners, cosmetics, etc. VOC health hazards: Eye, nose, throat inflammation; headache, loss of coordination, nausea, cancer; damage to liver, kidney, central nervous system.

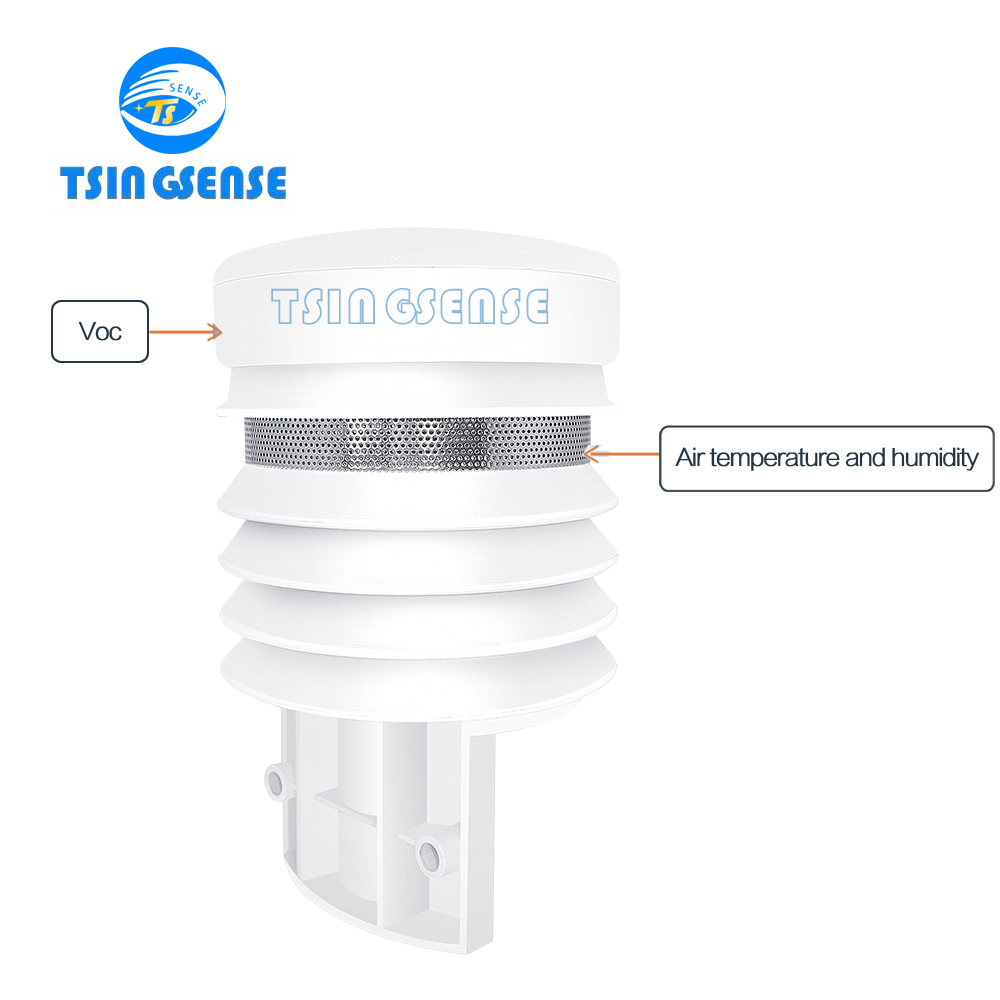

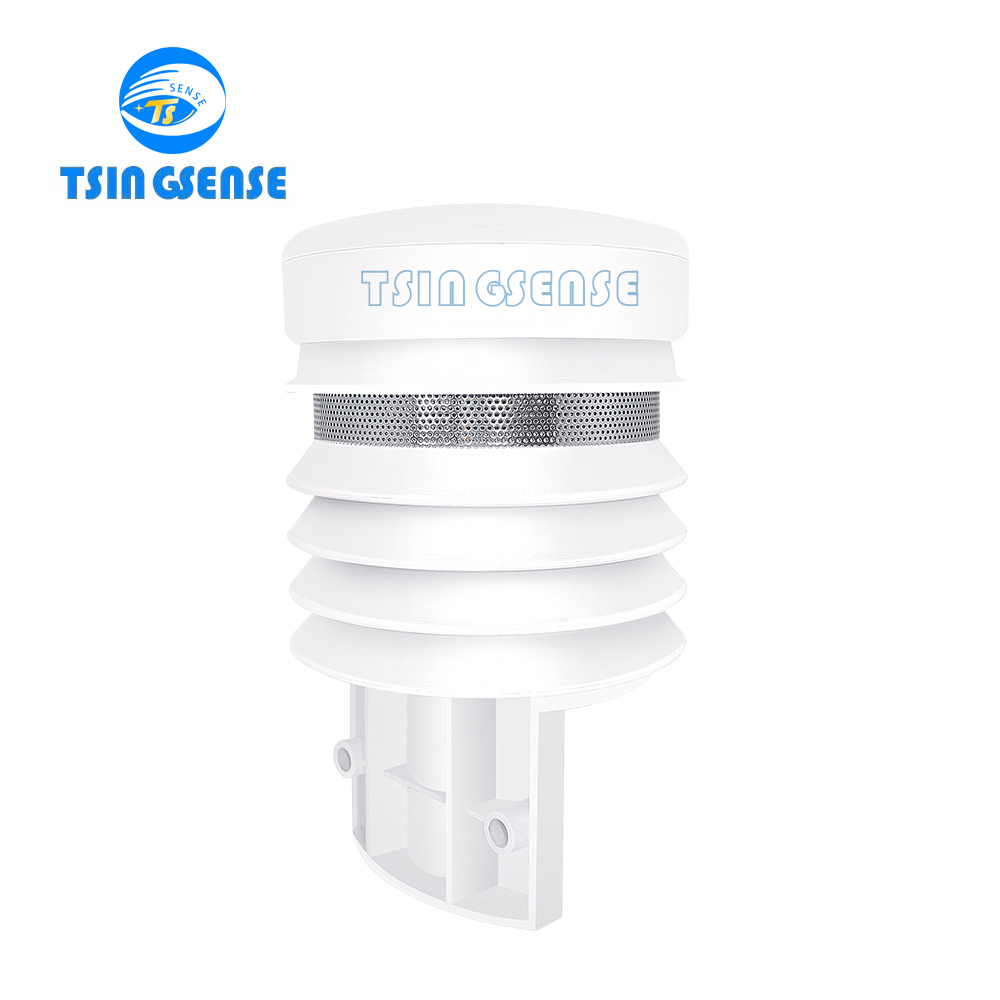

WES300 VOC Grid Micro Environment Monitoring Station is a professional small instrument for monitoring the urban environment, which can monitor VOC, temperature and humidity environment elements.The system adopts modules for flexible configuration, small size, low cost, and is suitable for gridded, dense, and refined layout requirements.
Features
● Support calibration
● Maintenance free and easy to install
● Industrial standard design
● Using semiconductor method to monitor the concentration of VOC
● Small volume, light weight
● Integrated monitoring system
● Low power, high precision
Technical Parameters
Factor | Measuring range | Resolution | Accuracy | Measuring principle |
Air temperature | -40°C~+80°C | 0.1°C | ±0.2°C | Platinum resistance |
Air humidity | 0~100%Rh | 0.1%Rh | 2%Rh | Capacitance |
Factor | Monitoring range | Detection limit | Measuring principle |
|
VOC | 0~100ppm | 5ppb | PID |
|
Optional configuration function (Built-in sensor): GPRS-a01, WiFi-a02, Ethernet-a03, GPS-b02 | ||||
Product Good Feedback
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WES300 VOC Monitoring Station
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 or GPRS(RS232 can be selected)
Q: What industries it can apply to?
A:Smart city, Intelligent traffic, Intelligent Community, Urban air quality monitoring, Smart lamppost, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
