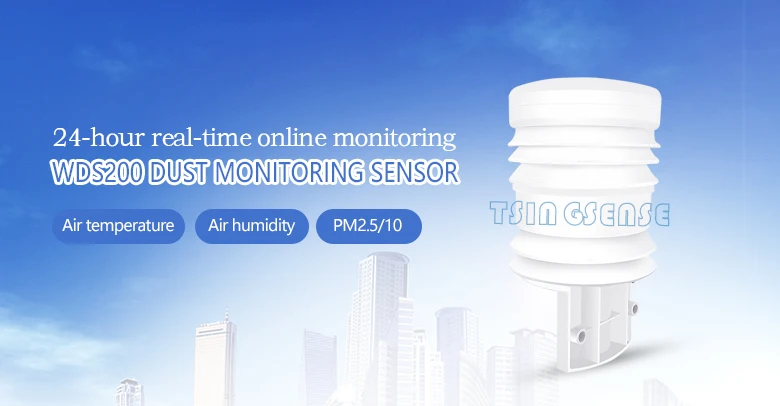

WDS200 Dust Monitoring Sensor
WDS200 All - in - One Dust Meteorological Sensor: Measures PM2.5, PM10, Atmospheric Temperature and Humidity, with Fast Response, High Precision, and Maintenance - Free for Meteorological Monitoring Stations
Product Description
The WDS200 integrated dust monitoring sensor is a small instrument for monitoring dust on the construction site. It can monitor two meteorological elements, air temperature and air humidity. It can also monitor two environments, PM2.5, PM10.The system is modularized and can be configured flexibly. Small volume, low cost, and it’ suitable for industrialized intensive stationing monitoring.
Features
● Maintenance free design
● Standard output protocol RS485
● Small volume, light weight
● Installation height is unrestricted
● Low power consumption, high precision
● Integrated dust monitoring system
● China’s first production company
Technical Parameters
|
Factor |
Measuring range |
Resolution |
Accuracy |
Measuring principle |
|
Air temperature |
-40°C~+60°C |
0.1°C |
±0.3°C |
Thermistor |
|
Air humidity |
0~100%Rh |
0.1%Rh |
±2%Rh |
Capacitance |
|
PM2.5 |
0~1000ug/m3 |
0.3ug/m3 |
±15% or ±10μg/m3 |
Laser scattering |
|
PM10 |
0~1000ug/m3 |
0.3ug/m3 |
±15% or ±10μg/m3 |
Laser scattering |
|
Optional configuration function (Built-in sensor): GPS-a01, WiFi-a02, Ethernet-a03,Electronic compass-b01, GPS-b02, Heating(48W)-c01, Heating(100W)-c02, Battery-d01. |
||||
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WDS200 Integrated dust monitoring sensor
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 (RS232 can be selected)
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart city,industrial park and mines, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
