WAS3000 Agricultural Meteorological Station
The WAS3000 multi - parameter agricultural meteorological station instruments measure a wide range of parameters, such as atmospheric temperature and humidity, air pressure, rainfall, wind speed, wind direction, light intensity, sunshine hours, radiation, soil temperature and humidity, soil pH, soil electrical conductivity, CO₂, CO, O₂, and SO₂. These measurements are then applied to the farm Internet of Things, enabling comprehensive environmental monitoring and data - driven decision - making in agricultural production.
Product Description

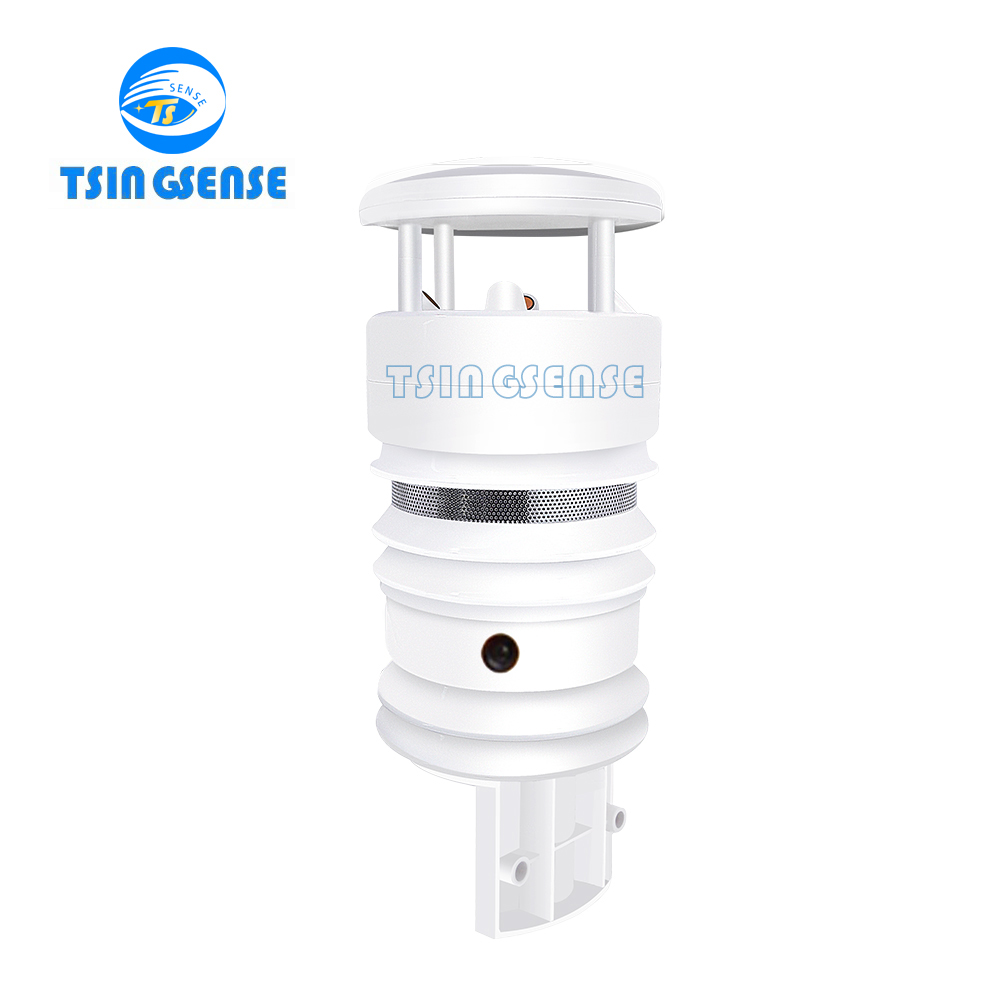

WAS3000 intelligent agricultural environment station is a new generation of observation equipment for monitoring agricultural production environment independently.It is mainly applicable to environmental monitoring related to agricultural production activities such as farmland, orchard, grassland and scientific research. It is used to observe the parameters related to soil temperature, Soil humidity, Air temperature, Air humidity, wind direction, wind speed, air pressure, rainfall, sunshine duration, Light intensity,radiation and other environmental parameters related to the growth of crops. And can be selected with ultraviolet radiation, carbon dioxide, carbon monoxide, sulfur dioxide and so on.Provides good support for agricultural scientific research, agricultural production, animal husbandry, etc.
Features
● Integrated design of multiple sensors,(No need for a receiver)
● Batteries and solar panels integrated,(No external power supply is required)
● Transmission of data by wireless communication,(GPRS/WIFI)
● Communication interface adopts RS485
● System can be used alone or in multi station network
● Data are collected, processed and analyzed through central station software
● Power consumption low reach 2 W
● High anti-interference ability
Technical Parameters
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Air temperature | -40℃~+80℃ | 0.1℃ | ±0.3℃ | Platinum resistance |
Relative humidity | 0~100%Rh | 0.1%Rh | ±2%(≤80%) ±3%(>80%) | Capacitance |
Air pressure | 10~1300hpa | 0.1hpa | ±1hpa | Piezoresistive |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
wind speed | 0~75m/s | 0.1m/s | ±(0.3+0.03V)m/s or 3% | Ultrasonic |
Rainfall | 0~5mm/min | 0.1mm | 3% | Optics |
Light intensity | 0~188000Lux | 0.1Lux | ±5F.S | Photoelectric conversion |
Soil temperature | -50℃~+80℃ | 0.1℃ | ±0.2℃ | Platinum resistor |
Soil humidity | 0~100%Rh | 0.1%Rh | ±2%Rh | EMP |
Solar radiation | 0~2000W/m2 | 1 W/m2 | ≤5% | Silicon photodetector |
Sunshine duration | 0~24h | 0.1h | 0.1h | Silicon photodetector |
Packing list
a set Integrated sensors(can monitor air temperature,air humidity,wind direction,wind speed,air pressure,rainfall,radiation,Light intensity,sunshine duration)
Integrated sensor for soil temperature and humidity 1 set
Solar power supply systems 1 set
Mounting brackets 1 set
Mounting hoops 2 sets
Instruction book 1 copy
Certificate 1 copy
FAQ for WAS3000 Intelligent agricultural environment station
Q:Can we choose the required sensor for the agricultural environment station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:Can we choose not to use solar panels and tripod?
A:Yes,this is optional.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(GPRS and WIFI can be selected)
Application
