Air Quality Monitoring Sensor
Visualizing air quality monitoring sensor for outdoor use
Low-cost Outdoor Visualizing Air Quality Monitoring Sensor can measure NO, NO₂, SO₂, CO, H₂S, O₃, TVOC, atmospheric temperature and humidity, wind direction, wind speed, air pressure, rainfall, PM2.5/10, and is suitable for air pollution monitoring.
Product Description
The remote visualization multi-parameter meteorological environment monitoring system is a new generation of intelligent meteorological observation equipment independently developed by our company. It adopts integrated precision sensing technology, integrates environmental perception, image acquisition and wireless transmission systems, and realizes a complete closed loop of meteorological monitoring from data collection to visualization. It is widely used in meteorology, agriculture, forestry, environmental protection, ocean, airport, port, electricity, campus education and other fields. The remote visualization multi-parameter meteorological environment sensor can monitor environmental factors such as Pm2.5, Pm10, SO2, NO2, CO, O3, NO, H2S, VOC, noise, etc. It can also integrate the monitoring of atmospheric temperature and humidity, wind speed and direction, air pressure, rainfall, radiation, ultraviolet and other meteorological factors, comprehensively covering the basic indicators of environmental monitoring and special observation needs.The remote visualization multi-parameter meteorological environment sensor has a built-in wide-angle camera, which can not only remotely view videos, but also has automatic snapshot functions. It can also view video images and monitor data in real time on the PC. The remote visualization multi-parameter meteorological environment sensor can read data directly on the PC through the serial port or equipped with a wireless module, which is convenient for users to monitor meteorological data and integrate systems.
Features

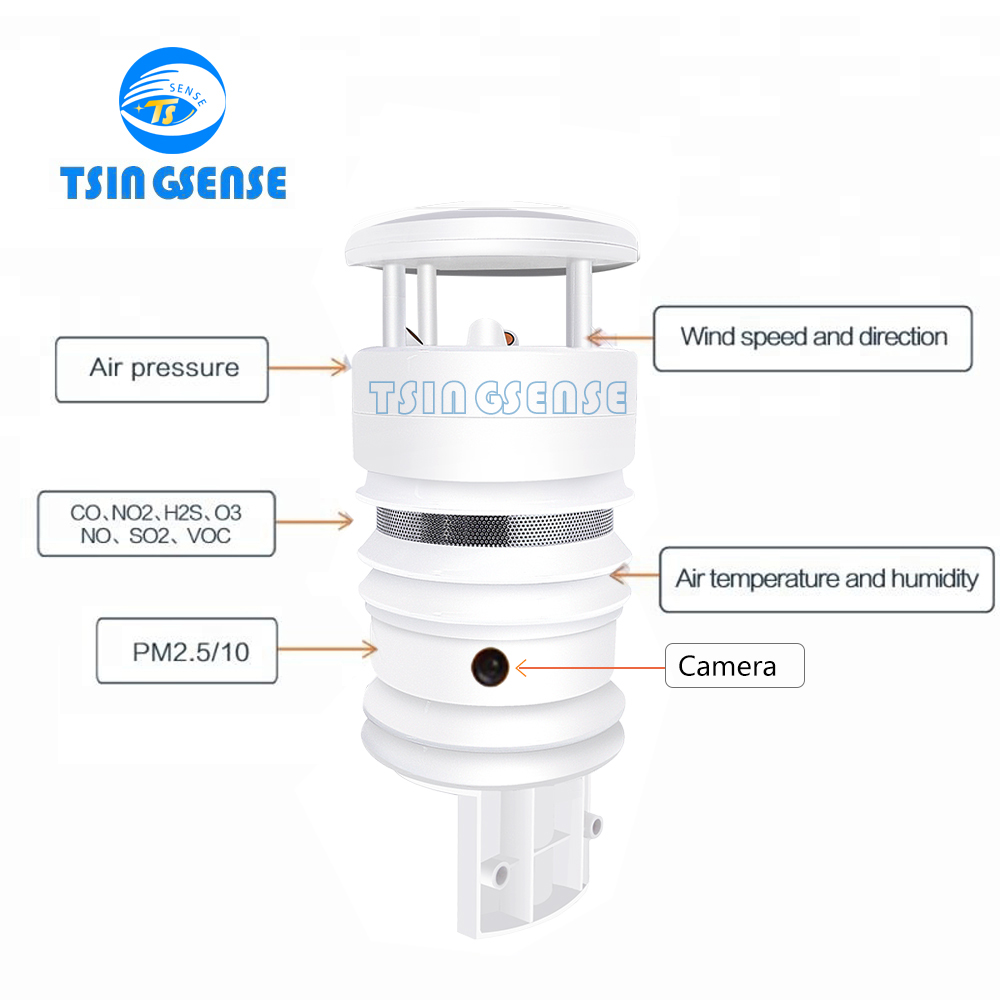

1.Integrated structure, a single device synchronously collects parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, radiation, ultraviolet rays, Pm2.5, Pm10, SO2, NO2, CO, O3, NO, H2S, VOC, noise and other environmental factors, reducing the cost of deploying multiple devices; supports -40℃~+80℃ wide temperature measurement, 0~75m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios. 2.Power consumption ≤ 0.4w; Solar power or AC power available; Can be installed on masts or tripods with a diameter of 60~75mm.
Technical Parameters
|
Factor |
Measuring range |
Resolution |
Accuracy |
Measuring principle |
|
Air temperature |
-50°C~+80°C |
0.1°C |
±0.2°C |
Thermistor |
|
Air humidity |
0~100%Rh |
0.1%Rh |
2%Rh |
Capacitance |
|
Wind speed |
0~75m/s |
0.1m/s |
±0.3m/s or 3% |
Ultrasonic |
|
Wind direction |
0~360° |
1° |
3° |
Ultrasonic |
|
Air pressure |
10~1300hPa |
0.1hPa |
0.3hPa(25°C) |
MEMS sensor (capacitive) |
|
Factor |
Monitoring range |
Detection limit |
Accuracy |
Measuring principle |
|
CO |
0~1000ppm |
0.1ppm |
—— |
Electrochemistry |
|
NO2 |
0~20ppm |
5ppb |
—— |
Electrochemistry |
|
SO2 |
0~100ppm |
5ppb |
—— |
Electrochemistry |
|
O3 |
0~20ppm |
5ppb |
—— |
Electrochemistry |
|
NO |
0~20ppm |
5ppb |
—— |
Electrochemistry |
|
H2S |
0~100ppm |
1ppb |
—— |
Electrochemistry |
|
VOC |
0~100ppm |
5ppb |
—— |
PID |
|
PM2.5 |
0~1000ug/m3 |
0.3ug/m3 |
±15% or ±10μg/m3 |
Laser scattering |
|
PM10 |
0~1000ug/m3 |
0.3ug/m3 |
±15% or ±10μg/m3 |
Laser scattering |
|
Optional configuration function(Built-in sensor): GPS-a01, WiFi-a02, Ethernet-a03, Electronic compass-b01, GPS-b02, Heating(48W)-c01, Heating(100W)-c02, Battery-d01. |
||||
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for Visualizing Air quality monitoring station
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 or GPRS(RS232 can be selected)
Q: What industries it can apply to?
A: Smart city, Intelligent traffic, Intelligent Community, Urban air quality monitoring, Smart lamppost, etc.
Q: How to install it?

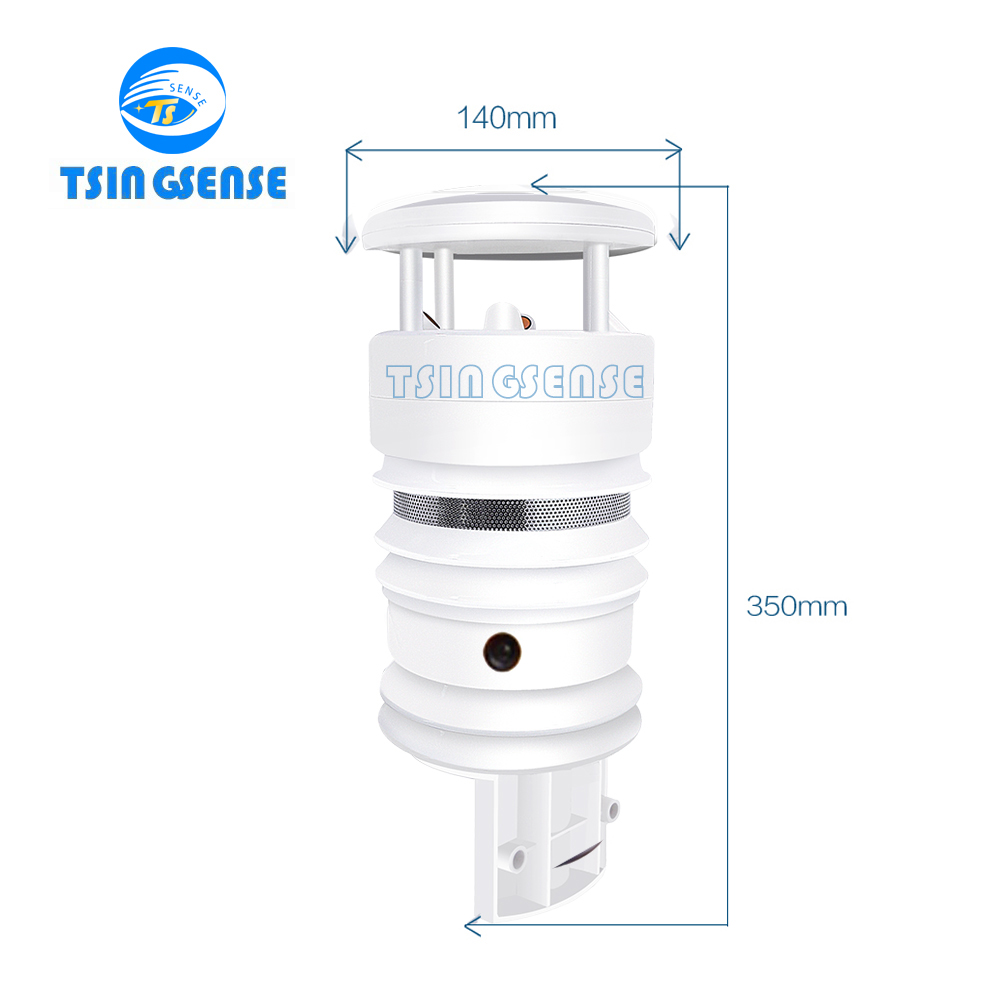

A: Installed on a hollow mast with a diameter of 60-75mm.

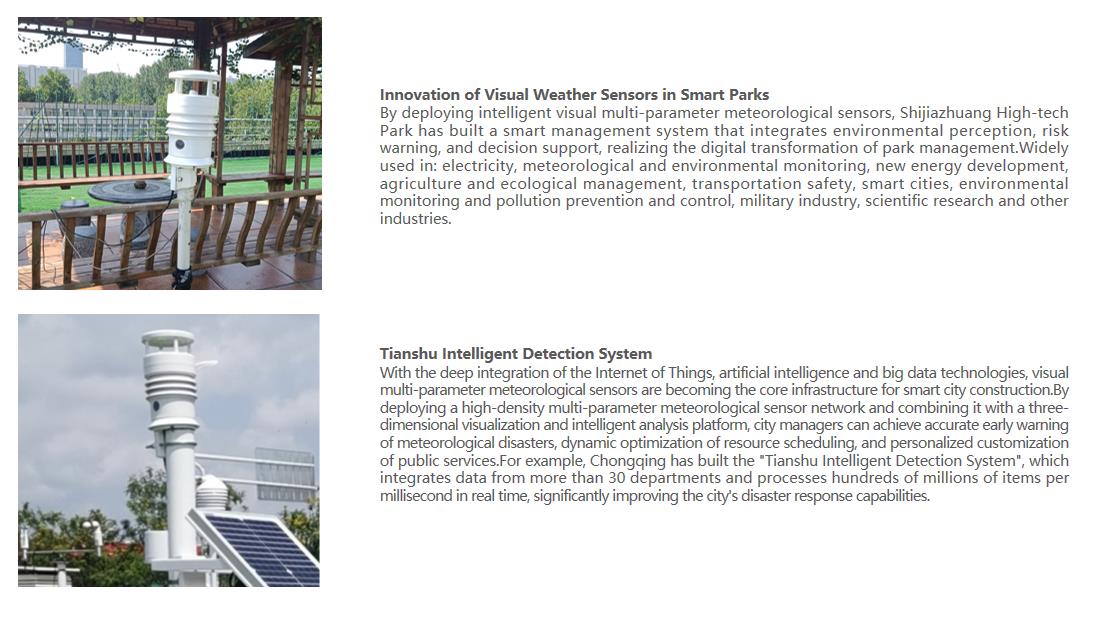

Application
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
