Weather Station
WTS700A Professional Meteorological Sensors for Precision Weather Monitoring
Smart Weather Station Sensors: Capable of measuring temperature, relative humidity, precipitation intensity, precipitation type, precipitation amount, air pressure, wind direction, wind speed, and radiation
Product Description

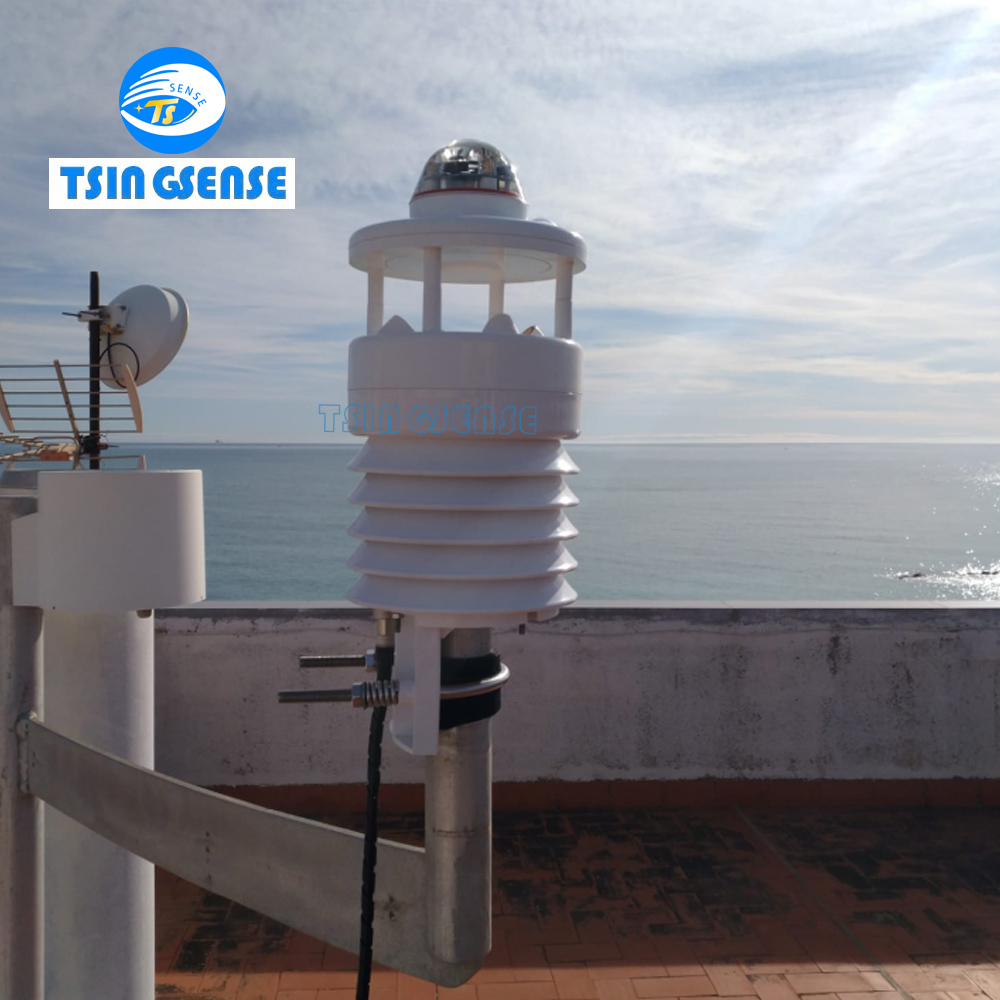

TS WTS700A integrated meteorological sensor is a professional-grade sensor independently developed by our company to measure multiple meteorological elements. It can simultaneously measure seven meteorological elements including temperature, humidity, air pressure, wind direction, wind speed, rainfall, radiation index. It has the advantages of high accuracy, fast response time, strong anti-interference ability, and serial port output.Users can make measurements directly through the PC or external instruments.
Features
● Integrated design of multiple sensors,(No need for a receiver)
● Design of maintenance free system,(Simple installation)
● Open system protocol
● RS485 output signal,(RS232 can be selected)
● Ultra low power design
● Industrial grade protective housing,( Ensure long-term outdoor use)
● Optional built-in electronic compass, GPRS, GPS, etc.
Technical Parameters
Factor | Measuring range | Resolution | Accuracy | Measurement principle |
Air temperature | -40℃~+80℃ | 0.1℃ | ±0.3℃ | Platinum resistance |
Air humidity | 0~100%Rh | 1%Rh | ±2%Rh | Capacitance |
Air pressure | 10~1300hpa | 0.1hpa | ±1hpa | Piezoresistive |
Wind direction | 0~360° | 1° | ±3° | Ultrasonic |
Wind speed | 0~60m/s | 0.1m/s | ±0.3m/s(3%) | Ultrasonic |
Rainfall | 0~5mm/min | 0.2mm | ±3% | Infrared light |
Solar radiation | 0~2000W/m2 | 1W/m2 | ≤5% | Silicon photodetector |
Optional configuration function(Built-in sensor ):GPRS-a01, WiFi-a02, Ethernet-a03,Electronic compass-b01, GPS-b02, Heating, Battery-d01. | ||||
Output signal:Standard RS485,Optional RS232 | ||||
UV index sensors can be added | ||||
Packing list
sensor 1 set
3.5m cable 1 line
instruction 1 copy
certificate/warranty 1 copy
packing list 1 copy
FAQ for WTS700 sensor
Q:Do you supply tripod and solar panels?
A:Yes, we can supply it, but this is optional.
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:RS485 output signal,(RS232 can be selected)
Application
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
