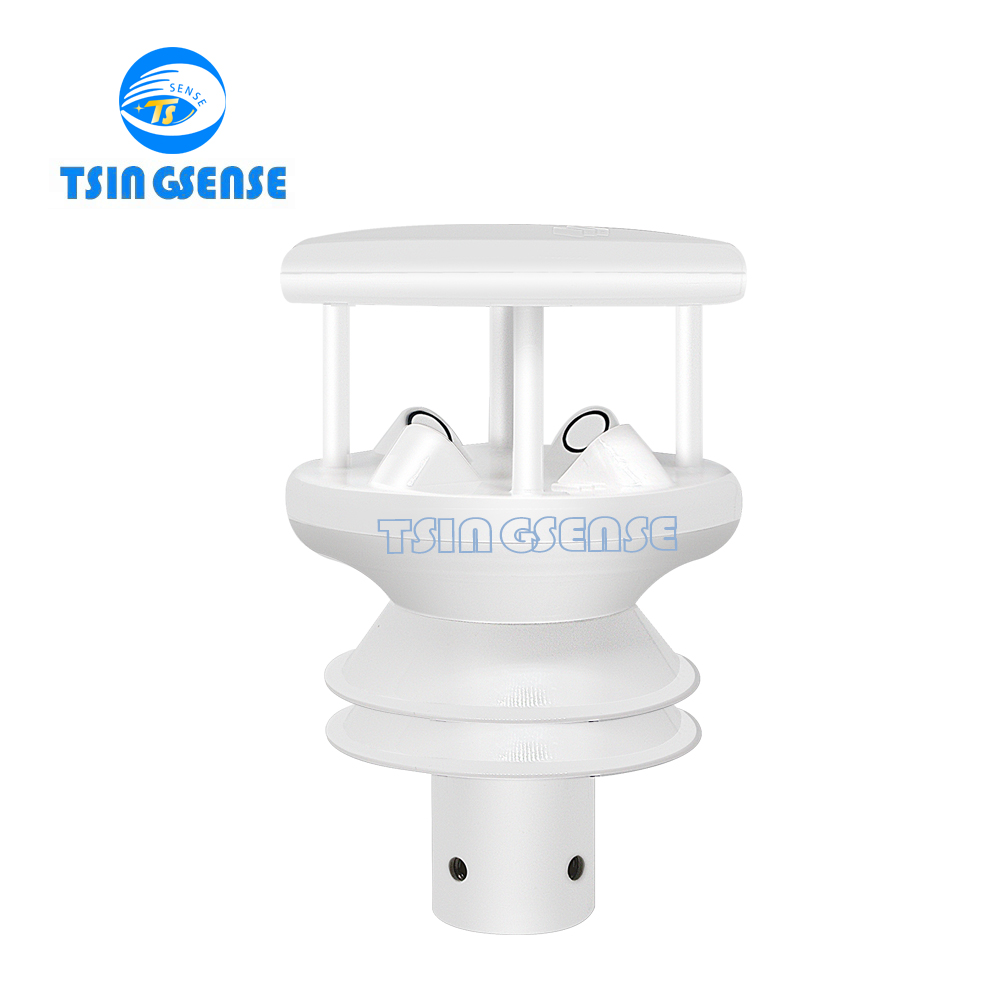

MWTS300 Ultrasonic anemometer weather sensor

TS MWTS300 intelligent weather sensor integrates the synchronous monitoring function of three major meteorological elements, and can accurately measure meteorological elements such as wind direction, wind speed, and rainfall.

place of origin:   Beijing, China
warranty:2 years
customized support:OEM
brand name:Tsingsense
model number:MWTS300
Operating Voltage:9V~30VDC
Humidity Range:0-100%RH
Resolution:Professional level
Output interface:RS485(RS232 can be selected)

Product Description

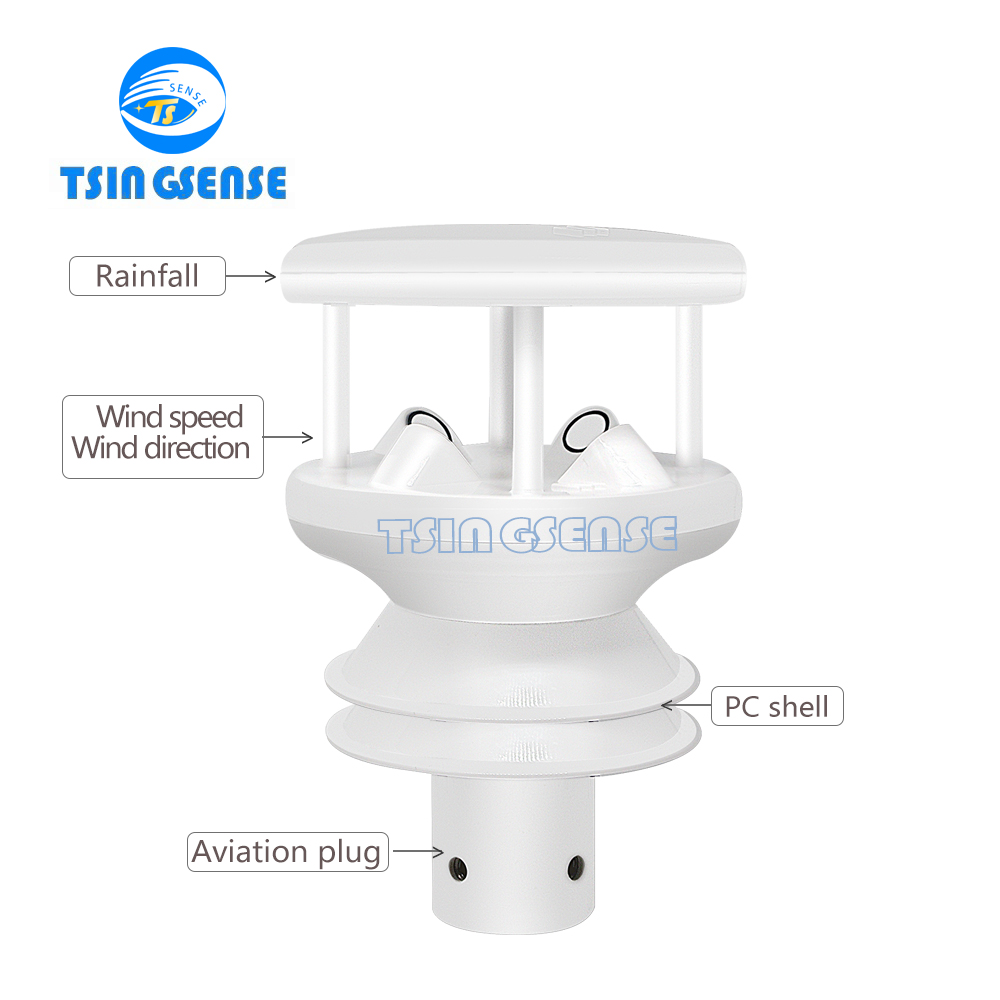

The TS MWTS300 integrated intelligent weather sensor is a new generation of meteorological and environmental monitoring equipment independently developed by our company. It is tailored for meteorological and environmental monitoring in areas such as smart cities, industrial environments, power generation, and agriculture and forestry. It integrates simultaneous monitoring of three major meteorological elements, accurately measuring wind direction, wind speed, rainfall, and other meteorological factors.

Technical Parameters

Parameter

Measuring range

Resolution

Accuracy

Measuring

principle

 wind direction

0~360°

±3°

Ultrasonic

Wind speed

0~40m/s

0.1m/s

±0.3m/s or3%

Ultrasonic

Rainfall

0~24mm/min

0.1mm/0.01mm

±5%

Optical/Radar

Reliability

Mean time between failures (MTBF), design value 85000h

Operating voltage

9V~30VDC

Data Protocol

Support ASCII code and Modbus protocol

Operating temperature

 -40℃~+80℃

Output

RS485, RS232, SDI12, 4-20mA, 0-5V optional

Operating humidity

0~100%Rh

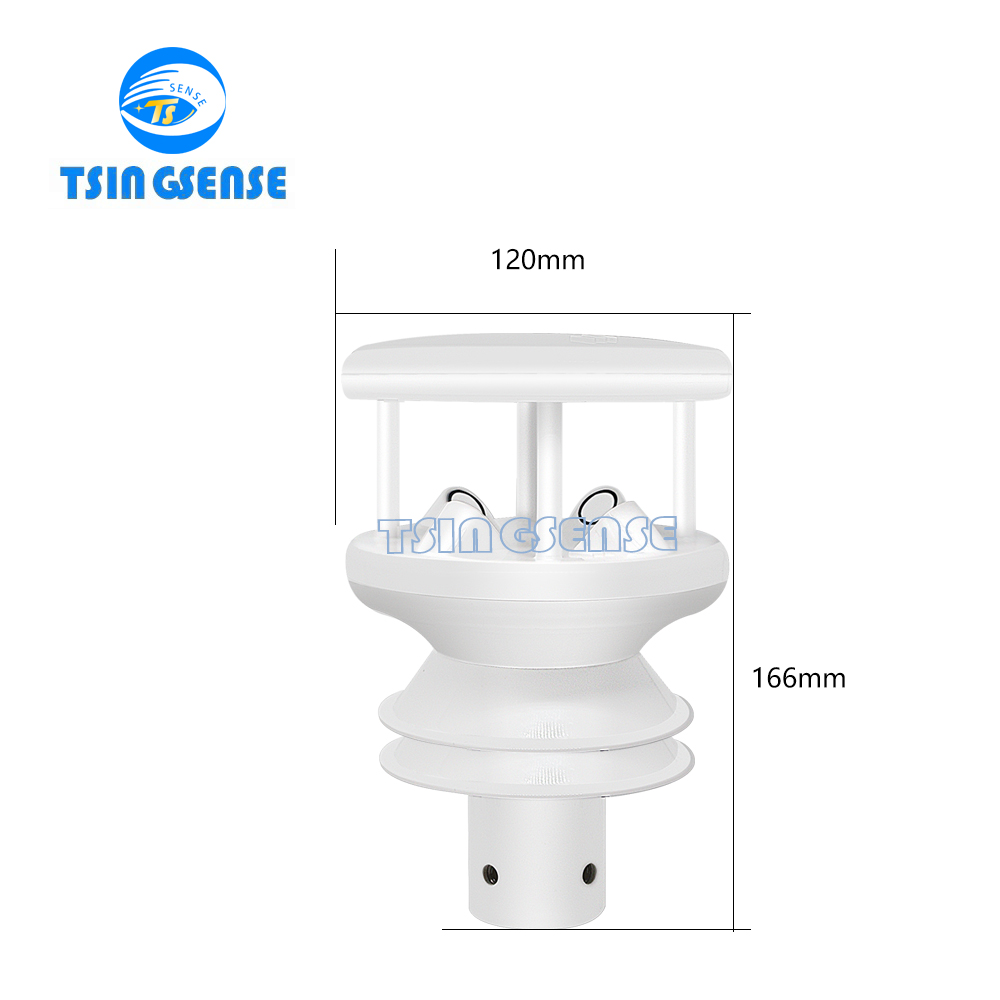

Size

120mm*120mm*166mm

Weight

0.38kg

FAQ for MWTS300

Q:Do you supply tripod and solar panels?

A: Yes, we can supply it, but this is optional.

Q:Can we choose other desired sensors?

A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.

Q:What is the way of transmission mode?

A: Communication interface adopts RS485

Q: What industry can be applied to in addition to construction sites?

A:Urban roads,bridges,smart city,industrial park and mines, etc.

Q: How to install it?

A: Installed on a hollow mast with a diameter of 60-75mm.

Application


FAQ

 Q: Are you the final manufacturer?

A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.

Q: Do you offer free samples?

A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.

Q: What payment ways do you accept?

A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.

Q: What is your delivery time?

A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .

Q: What is the way of delivery?

A:  Freight mode depends on time demand and customer requirements.

Q: How is your quality assurance service?

A: Our service is 2 years quality assurance, responsible for free maintenance.
