Dust Sensor
MWDS10 Dust concentration sensor

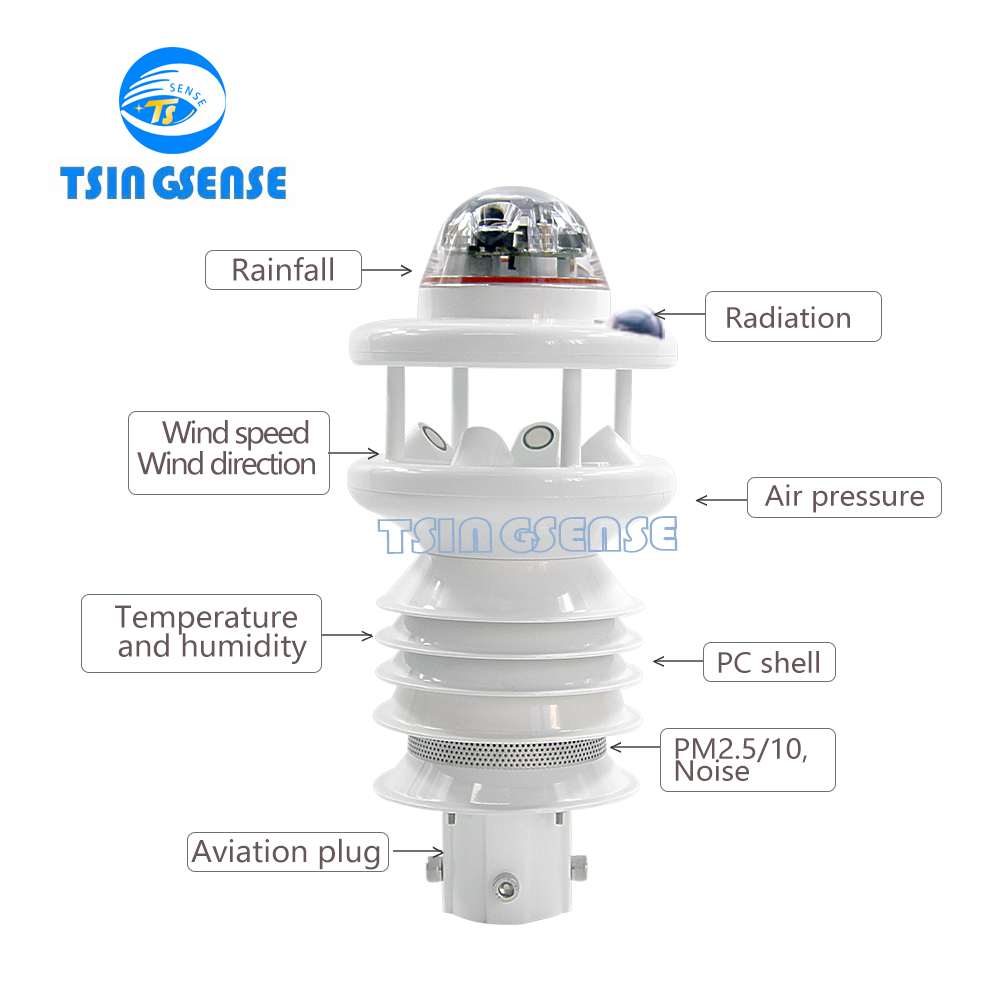

Dust concentration sensor structure can collect parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, etc. It supports wide temperature measurement of -40℃~+80℃, 0~40m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios.
Product Description
Features
- Flexiblely configure monitoring module
- Standard Modbus protocol
- Small size, light weight, high precision
- Integrated design, maintenance-free, easy to install
- Can expand GPS, electronic compass, GPRS and other functions
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+60℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10～1300hPa | 0.1hPa | ±0.3hPa | Silicon piezoresistive |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～40m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Rainfall | 0～24mm/min | 0.1mm/0.01mm | ±5% | Optical/Radar |
Radiation | 0～2000w/㎡ | 0.1w/㎡ | ≤ 5% | Silicon Photodetector |
Noise | 30-130dB | A weighting (simulating human ears) | ±1.5dB | Capacitive |
PM2.5/10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or15% | Laser scattering |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |
Size | 120mm*120mm*272mm | Weight | 0.7kg | |
Sensor 1 set
3.5m cable 1 line
Instruction 1 copy
Certificate/warranty 1 copy
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 (RS232 can be selected)
Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart city,industrial park and mines, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
