Dust Sensor

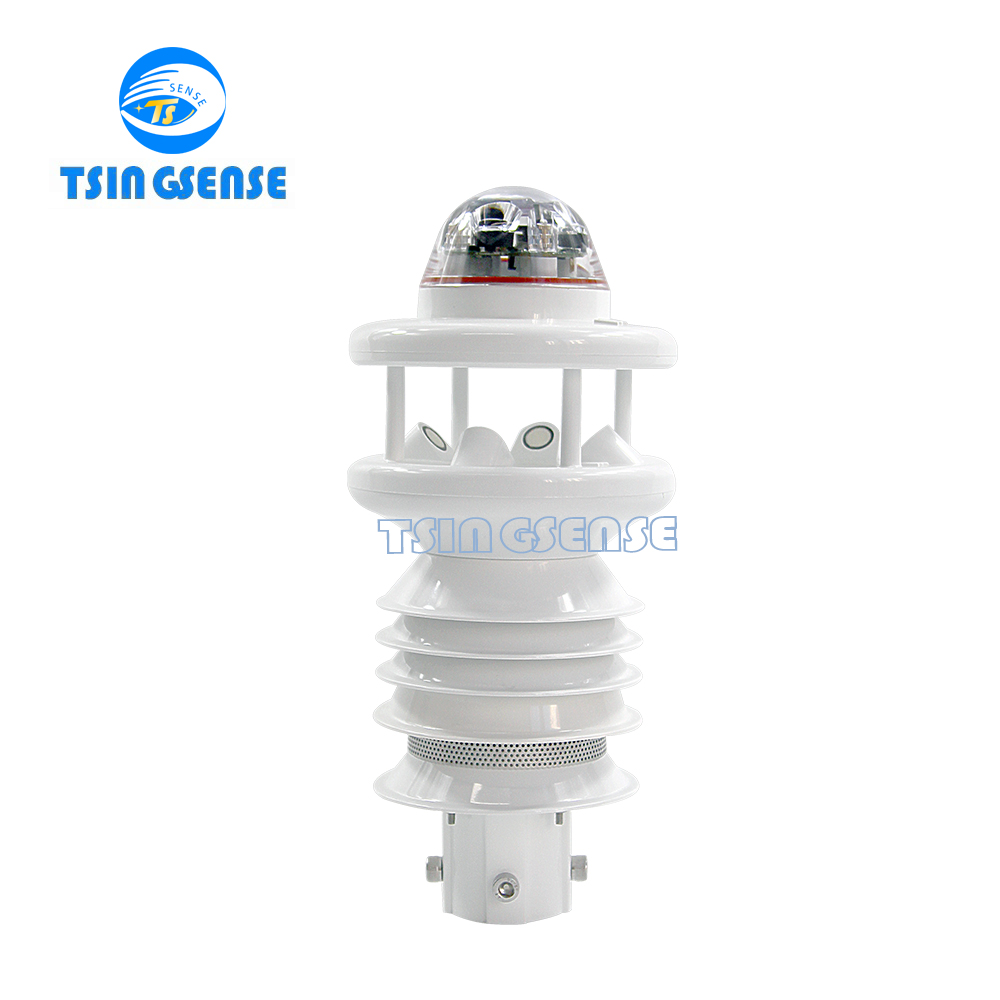

MWDS09 Dust monitoring sensor

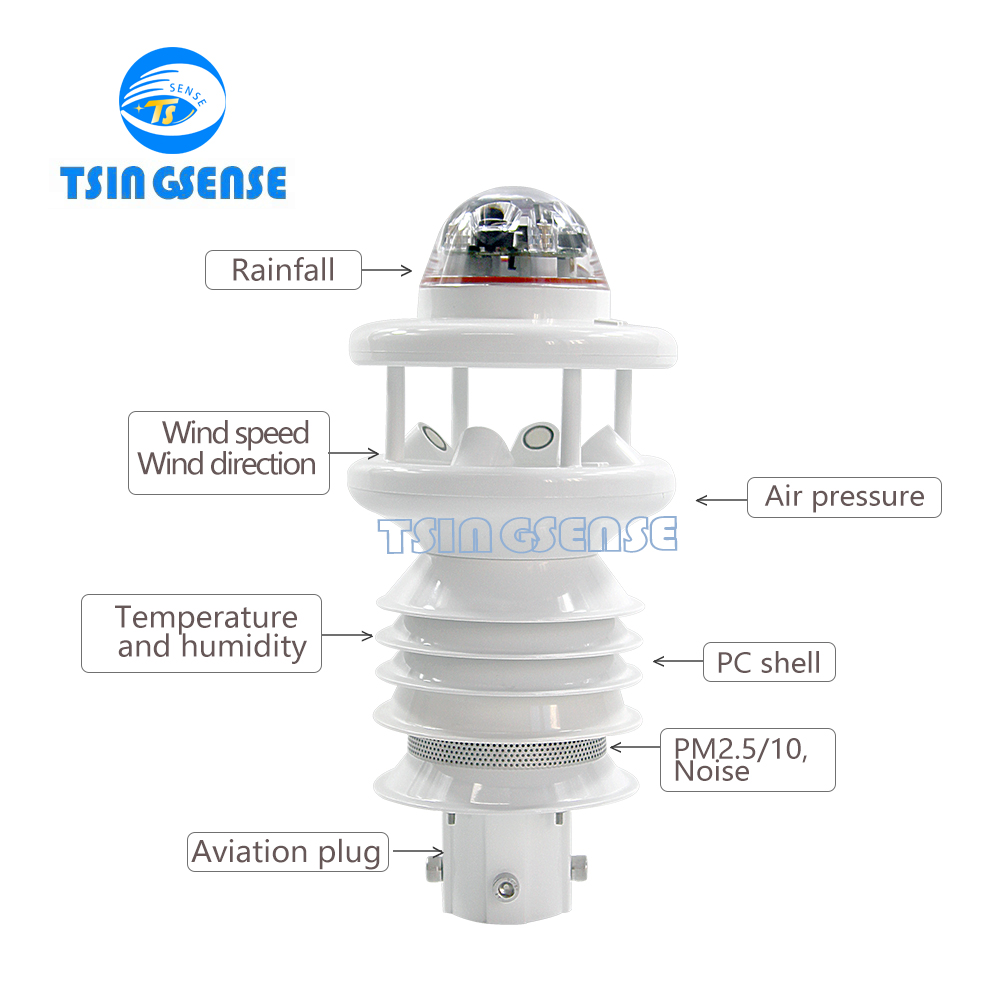

The integrated structure can collect parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, etc. It supports wide temperature measurement of -40℃~+80℃, 0~40m/s strong wind monitoring and 0~24mm/min rainfall measurement range, adapting to extreme climate scenarios.
Product Description
Features
- Flexiblely configure monitoring module
- Standard Modbus protocol
- Small size, light weight, high precision
- Integrated design, maintenance-free, easy to install
- Can expand GPS, electronic compass, GPRS and other functions
Technical Parameters
Parameter | Measuring range | Resolution | Accuracy | Measuring principle |
Air Temperature | -40℃～+60℃ | 0.1℃ | ±0.2℃ | Platinum resistance |
Air Humidity | 0%～100%Rh | 0.1%Rh | ±2%Rh | Capacitance |
Air pressure | 10～1300hPa | 0.1hPa | ±0.3hPa | Silicon piezoresistive |
wind direction | 0～360° | 1° | ±3° | Ultrasonic |
Wind speed | 0～40m/s | 0.1m/s | ±0.3m/s or 3% | Ultrasonic |
Rainfall | 0～24mm/min | 0.1mm/0.01mm | ±5% | Optical/Radar |
Noise | 30-130dB | A weighting (simulating human ears) | ±1.5dB | Capacitive |
PM2.5/10 | 0~1000μg/m3 | 0.3μg/m3 | ±10μg/m3 or15% | Laser scattering |
Reliability | Mean time between failures (MTBF), design value 85000h | Operating voltage | 9V～30VDC | |
Data Protocol | Support ASCII code and Modbus protocol | Operating temperature | -40℃～+80℃ | |
Output | RS485, RS232, SDI12, 4-20mA, 0-5V optional | Operating humidity | 0～100%Rh | |

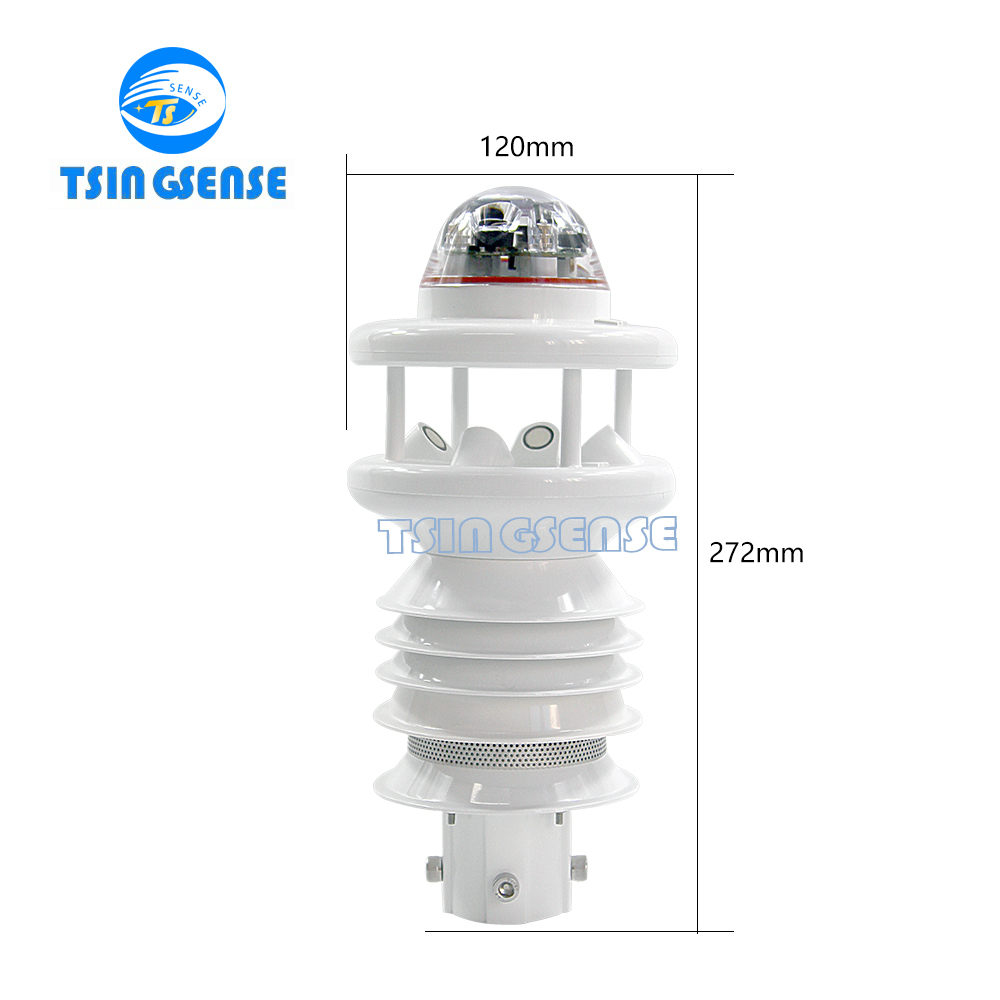

Size | 120mm*120mm*272mm | Weight | 0.7kg | |
Sensor 1 set
3.5m cable 1 line
Instruction 1 copy
Certificate/warranty 1 copy
Q:Do you supply tripod and solar panels?
A: Yes, we can supply it, but this is optional.
Q:Can we choose other desired sensors?
A: Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A: Communication interface adopts RS485 (RS232 can be selected)

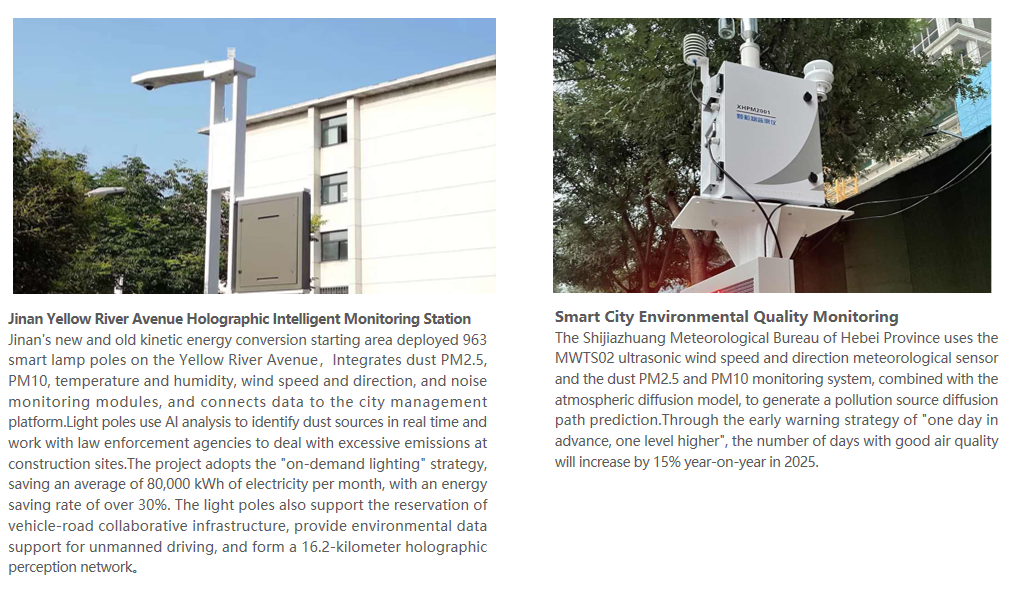

Q: What industry can be applied to in addition to construction sites?
A:Urban roads,bridges,smart city,industrial park and mines, etc.
Q: How to install it?
A: Installed on a hollow mast with a diameter of 60-75mm.
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
