AVS05 Compact Visibility Sensor
The AVS05 visibility sensor can measure visibility data in rainy, foggy and snowy weather conditions, and it is widely applied in the transportation sectors such as airports, expressways, waterways, and for large ships, etc.
Product Description
TS AVS05 Micro visibility sensor is a compact visibility measuring instrument based on the principle of aerosol pre-scattering developed by the company. Small size, light weight and easy to move. The device adopts RS485 output and has two communication protocols: Modbus and ASCII. Widely used in smart transportation, meteorological monitoring, maritime affairs , environmental protection, scientific research and other industries.
Features
- Low power consumption, less than 1W
- Maintenance-free design, easy to install
- Small size, light weight, easy to carry
- Output interface is RS485 (RS232 optional)
- IP66 protection level, can adapt to harsh environments in the wild
- With automatic lens contamination detection and compensation, alarm function
Technical parameters
| measurement range | 10m~2km | |
| Measurement parameter | measurement accuracy | ≤500m (error±5%); 500m~2km(error±10%) |
| instrument consistency | ≤±4% | |
| data update interval | 15s~600s optional | |
| Power supply parameter | input power | DC12V (9~24V) |
| power consumption | When normal ( not heating) <1.5W; when heating <3W | |
| Mechanical parameters | size(L*W*H) | 250mm × 80mm × 142mm |
| weight | <2kg | |
| material | Anodized, hard aluminum, external surface with paint protection | |
| Environmental parameters | working temperature | -50℃~+80℃ |
| working humidity | 0~100% | |
| Mean time without failure | 1.5 x 50000 hour |
Packing list
sensor a set
certificate/warranty a copy
packing list a copy
Q:Can we choose the required sensor for the weather station?
A:Yes, you should tell us what sensors you need before placing the order, and then we will quote according to your request.
Q:What is the way of transmission mode?
A:Communication interface adopts RS485,(RS232 can be selected)

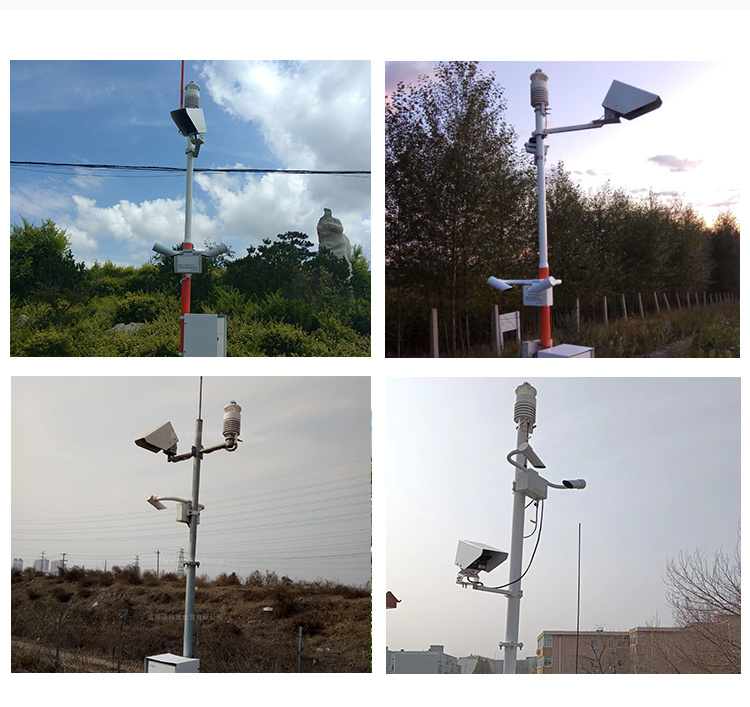

Application
Q: Are you the final manufacturer?
A: Yes, we are responsible for purchasing raw materials, designing hardware structure and equipment running program.Selection processing plant for parts production.Finally, we will carry out product assembly, equipment commissioning, testing, packaging, etc.
Q: Do you offer free samples?
A: Sorry, we don’t offer free samples. You should pay the sample fee and freight.
Q: What payment ways do you accept?
A:You can pay us by T/T,PayPal,Credit Card,MoneyGram.
Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed . If quantity is more than 100pcs /order, it will need extra 3-5 working days .
Q: What is the way of delivery?
A: Freight mode depends on time demand and customer requirements.
Q: How is your quality assurance service?
A: Our service is 2 years quality assurance, responsible for free maintenance.
Q: Could we make a visit to your company?
A: Of course, we welcome all the friends’ visits.
